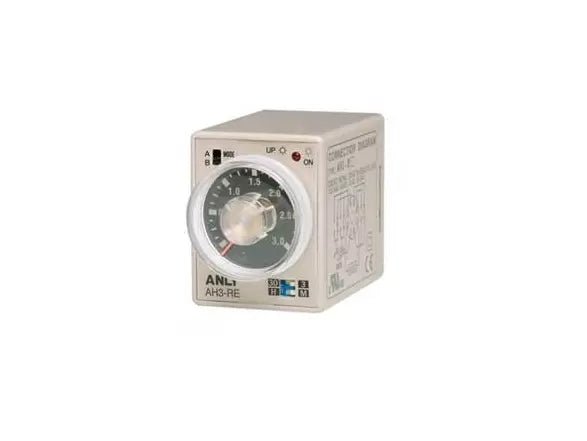

ANLY AH3-RE Analog Timer Relay – 3m / 30m / 3h / 30h Multi-Range (8-Pin)

ANLY AH3-RE Analog Timer Relay – 3m / 30m / 3h / 30h Multi-Range (8-Pin)

Get reliable delay control with the ANLY AH3-RE Analog Timer — a versatile ON-delay relay with four selectable time ranges for automation, heating, lighting, and control circuits.

✅ Condition

Brand New – Genuine ANLY OEM Product

🔢 Model

AH3-RE

🛠 Product Overview

The ANLY AH3-RE is a multi-range ON-delay timer relay designed for precise and stable timing in industrial and commercial applications.

Select from 3 minutes, 30 minutes, 3 hours, or 30 hours, then fine-tune using the front dial for accurate delay control.

Ideal for control panels, ovens, pumps, compressors, and automation systems.

⭐ Key Features

Multi-range timer – 3m / 30m / 3h / 30h
ON-delay function – reliable delayed switching
Analog dial control – simple and precise adjustment
SPDT output – flexible switching configuration
LED indicators – power and timing status
Industrial-grade construction – durable and reliable
8-pin plug-in design – quick replacement and installation

⚙️ Technical Specifications

Function: ON-delay timer
Time Ranges: 3m / 30m / 3h / 30h
Output: SPDT (Single Pole Double Throw)
Contact Rating: 5A @ 250V AC / 30V DC
Accuracy: ±5% full scale
Mounting: 8-pin plug-in (PYF08A socket compatible)
Operating Temp: –10°C to +55°C
Dimensions: Approx. 48 × 48 × 78mm

🔌 Power Supply (Important – Choose Correct Version)

AC Version: 100–240V AC (50/60Hz)
DC Version: 12–48V DC

⚠️ Confirm your required voltage before purchase

🔧 Applications

Suitable for:

Industrial control panels
Ovens and heating systems
Water pumps and compressors
Lighting delay circuits
HVAC systems
Motor protection and delay start systems

🚨 Problems This Part Fixes

Inconsistent or incorrect timing
Relay not switching on/off
Equipment starting too early or too late
No LED indication or dead timer
Intermittent control circuit faults

🧰 Installation Notes

Disconnect power before installation
Install into compatible 8-pin socket (PYF08A)
Select correct time range before operation
Adjust dial to required delay time
Wire according to diagram on unit
Test timing function after installation

Professional installation recommended for control panels

📦 Shipping & Support

Fast Australian Dispatch
Secure packaging
Local support – message us for compatibility checks

💡 Why Choose This Part?

Proven ANLY industrial reliability
Multi-range flexibility in one unit
Easy plug-in replacement design
Accurate and stable timing control
Widely used in automation and machinery
