AVG 15mm 1/2" 1400kPa PTR Pressure Temperature Relief Valve PTR15/1400

💧 AVG 15mm (½") 1400kPa PTR PRESSURE TEMPERATURE RELIEF VALVE – PTR15/1400

Protect your hot water system with the Genuine AVG 15mm (½") 1400kPa Pressure & Temperature Relief Valve (PTR15/1400) 🔥💦
Designed for safety and reliability, this Australian-made valve automatically releases excess pressure and temperature buildup — preventing damage to your storage water heater and ensuring long-lasting performance ⚙️✅

⚙️ Product Overview

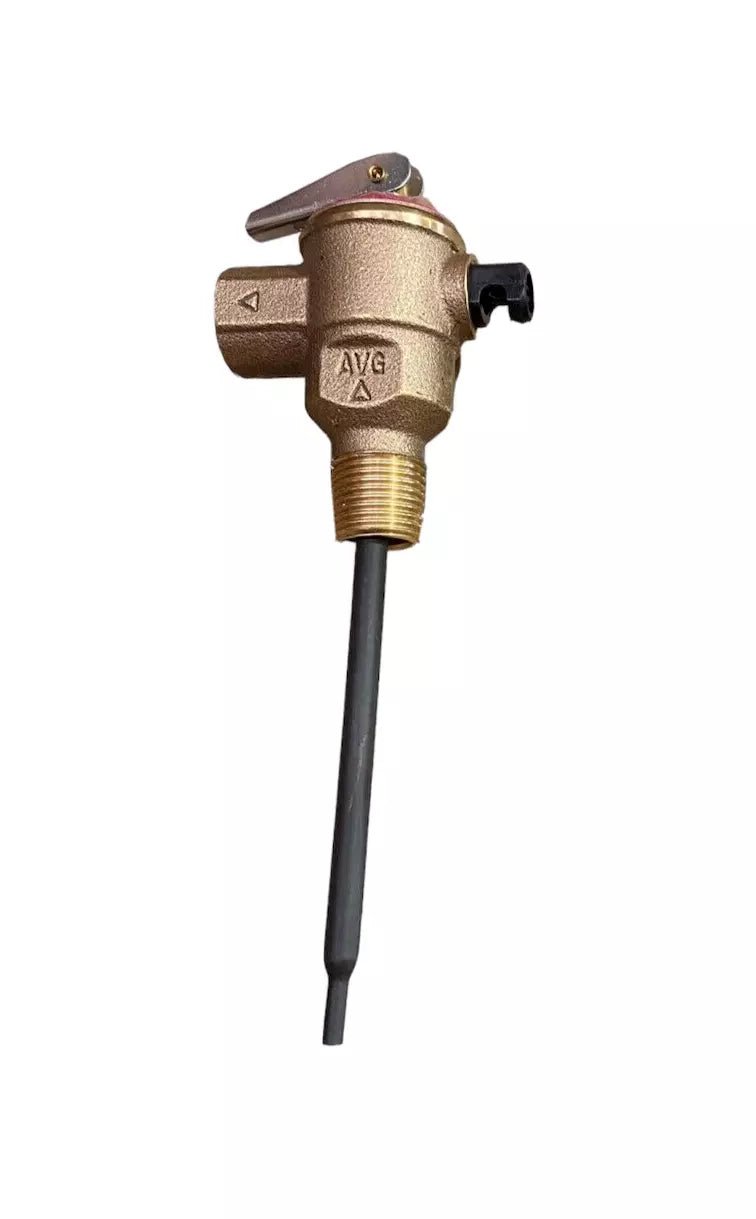

The AVG PTR15/1400 is a high-quality brass combination valve that safeguards your hot water service (HWS) by discharging water when the temperature or pressure exceeds safe limits.
It’s essential for all storage water heaters, providing automatic protection and compliance with AS 1357.1 Australian plumbing standards 🇦🇺

✅ Key Features & Benefits

• 🔹 Genuine AVG Product – trusted Australian manufacturer of water safety valves.

• 🔹 Part Number: PTR15/1400

• 🔹 Connection Size: 15mm (½" BSP male inlet, 15mm female outlet).

• 🔹 Pressure Rating: 1400 kPa (kilopascals).

• 🔹 Temperature Rating: 99°C maximum discharge temperature.

• 🔹 Flow Rate: Meets AS1357.1 and WaterMark certification standards.

• 🔹 Material: Durable brass body with stainless steel spring and lever.

• 🔹 Function: Combines both pressure relief and temperature relief functions in one compact design.

• 🔹 Lever Action: Manual easing lever for testing and maintenance.

• 🔹 Application: Suitable for mains pressure storage hot water systems up to 315L capacity.

• 💧 Protects Your System: Automatically discharges water when the heater exceeds safe temperature or pressure limits, preventing damage or bursting.

🧾 Technical Specifications

🔧 Installation & Use

⚠️ Important: This valve should be installed by a licensed plumber in accordance with Australian Standards.

1️⃣ Turn off power and water supply to the hot water system.
2️⃣ Remove the old PTR valve if fitted.
3️⃣ Apply thread seal tape to the male thread of the new valve.
4️⃣ Install the new AVG PTR15/1400 securely into the heater’s relief valve port.
5️⃣ Connect discharge pipe to outlet (directed downward to safe drain).
6️⃣ Turn on water supply and test the valve using the lever.

📸 Tip: Operate the easing lever every 6 months to ensure smooth function and prevent scale buildup.

💬 Common Signs You Need a New PTR Valve

🚫 Water constantly dripping from the relief pipe
⚠️ No discharge during testing
💧 Excessive pressure or hissing sounds from the tank
🔥 Hot water tank overheating or shutting down unexpectedly

Replacing your old or leaking PTR valve ensures safe pressure regulation, prevents leaks, and extends the life of your hot water system 🌡️💪

🌟 Why Choose AVG?

✅ Australian-made and certified 🇦🇺
✅ Trusted by plumbers and service professionals nationwide
✅ Durable brass and stainless-steel construction
✅ Complies with WaterMark & AS1357.1 standards
✅ Reliable protection for residential and commercial systems

📦 What’s Included

• 1 × AVG PTR15/1400 Pressure & Temperature Relief Valve

• Factory-sealed and WaterMark certified packaging
