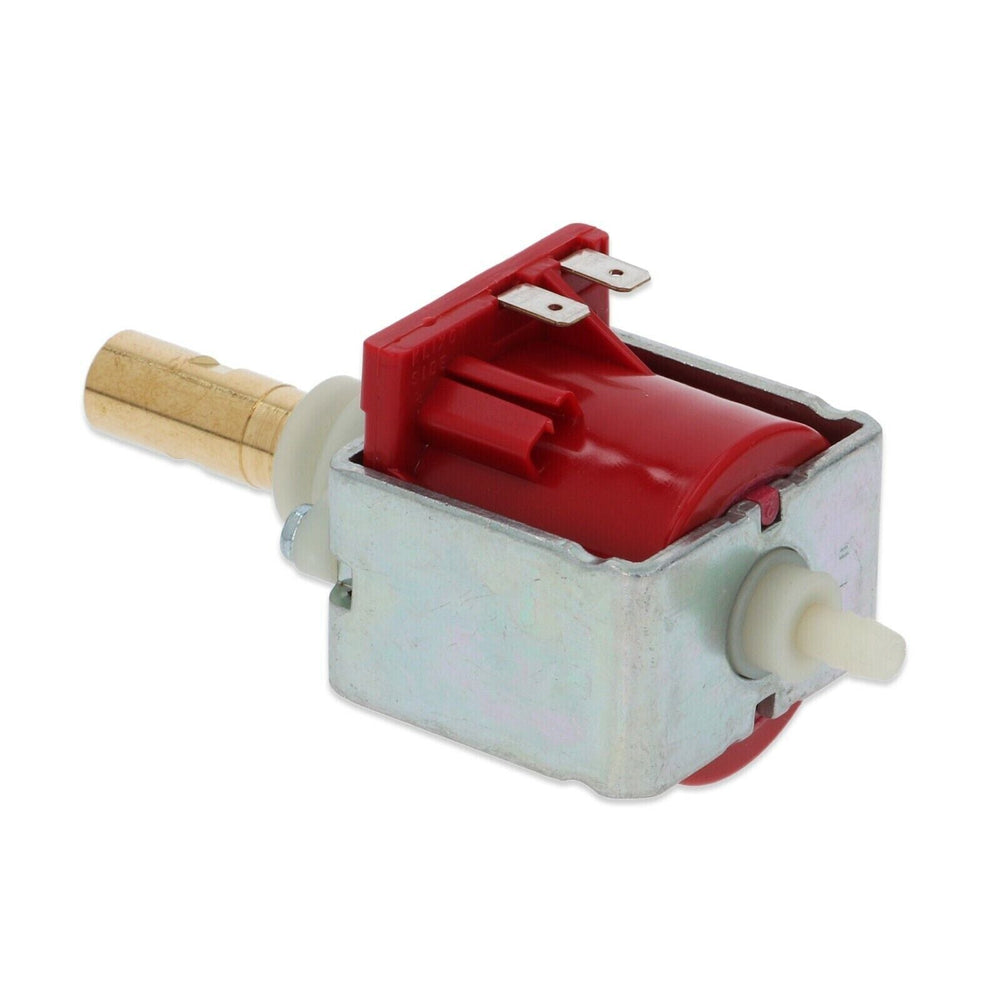

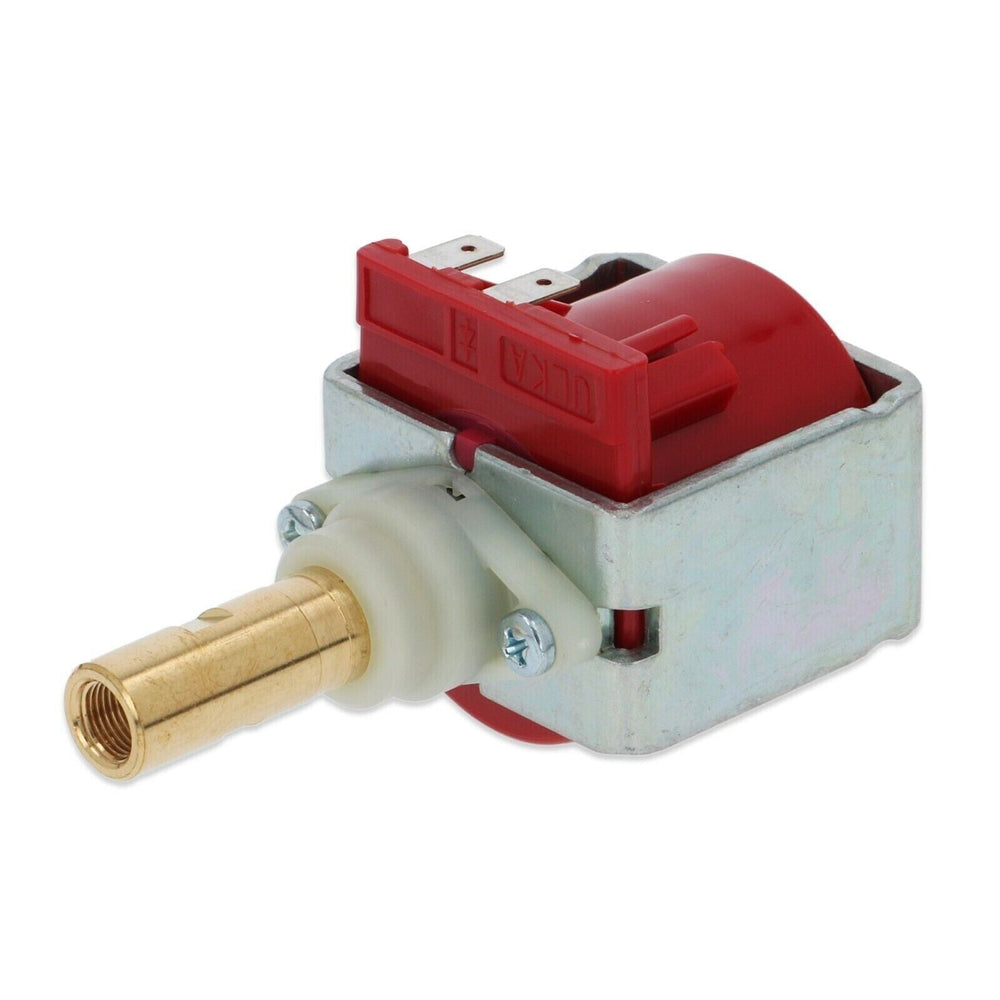

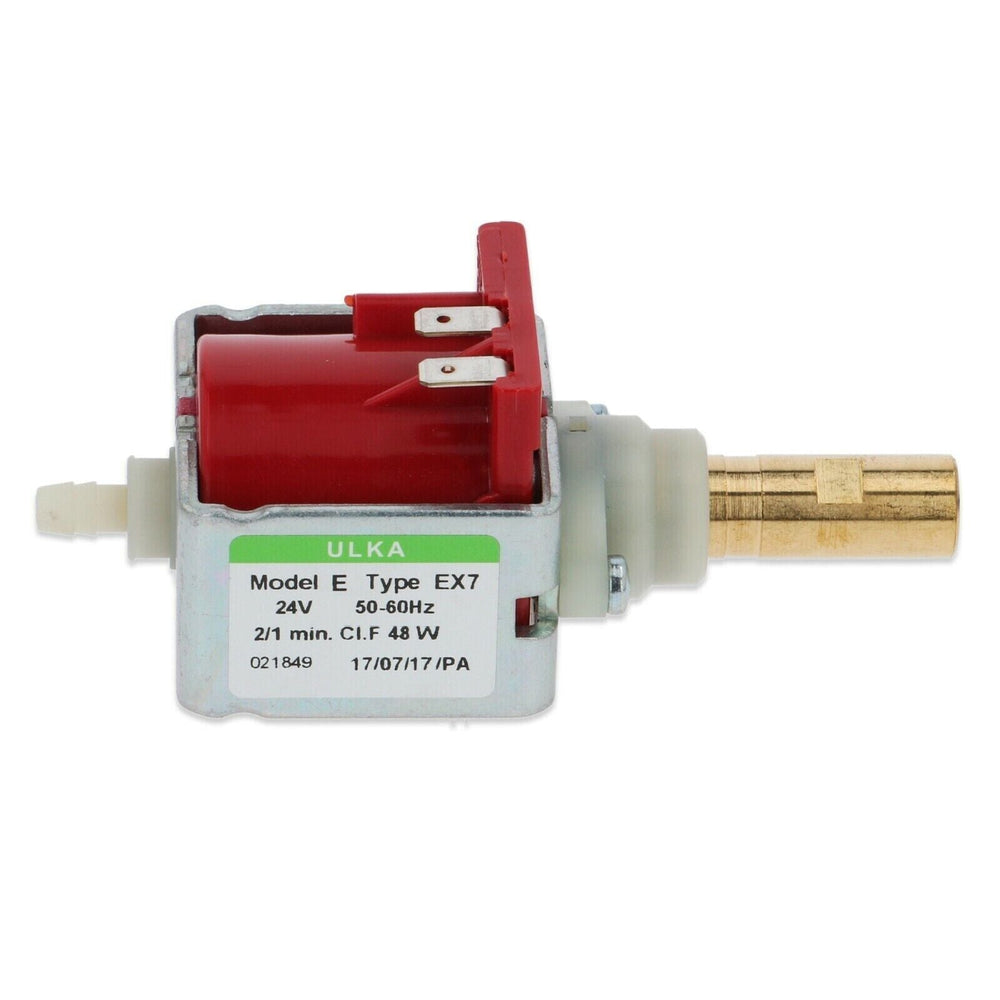

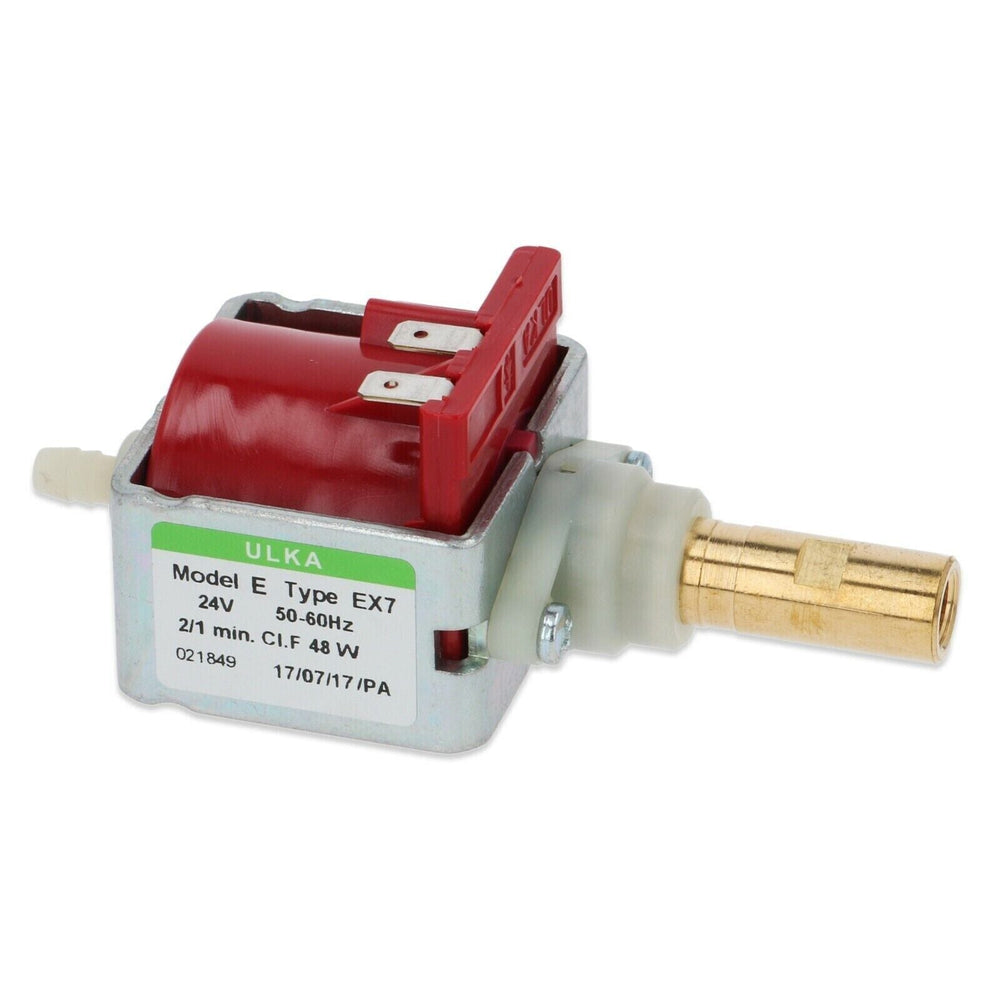

ULKA EX7 Vibratory Pump 24V 48W – 15 Bar Coffee Machine Pump (Brass Outlet)

Part Number: ULKA EX7
Condition: Brand New
Type: Vibratory Coffee Pump
Voltage: 24V
Power: 48W
Max Pressure: 15 Bar

🔧 Product Overview

The ULKA EX7 Vibratory Pump (24V / 48W / 15 Bar) is a genuine OEM component designed to deliver consistent water pressure and reliable performance in coffee vending and espresso systems.

If your machine is experiencing low pressure, weak extraction, or inconsistent flow, replacing the pump is the most effective solution.

Engineered for commercial use, this pump ensures stable pressure output, efficient operation, and long-term durability, helping maintain high-quality coffee extraction.

⚙️ Key Features

✔ Genuine ULKA pump – trusted commercial quality
✔ 15 bar pressure for optimal espresso extraction
✔ 24V low voltage operation (vending systems)
✔ Durable brass outlet for long lifespan
✔ Integrated diode (1N4007P) for circuit protection
✔ Compact design (123mm length)
✔ Low noise and minimal vibration
✔ Easy installation with push-fit terminals

🛠 Problems This Part Fixes

• Low or inconsistent water pressure
• Weak espresso extraction
• Pump not running or noisy operation
• Intermittent water flow
• Vending machine not dispensing correctly

🔄 Replaces / Alternate Part Numbers

ULKA EX7
1.01.335.08/PA
10133508PA
1.01.335.08/PAI
1.01.329.08/PA

🔩 Compatibility

Commonly used in coffee vending machines and espresso systems, including:

GPE Vendors Models:
DBX300
DBX300 ESPRESSO
DBX400
DBX400 ESPRESSO NEW

DBX300T2-4-4C
DBX400T4-12-7
DBX300T2-11-7
DBX400T4-4-4C

⚠️ Important:
Confirm your system uses a 24V pump (not 230V) before purchasing.

🛠 Specifications

Voltage: 24V
Power: 48W
Frequency: 50/60Hz
Maximum Pressure: 15 bar
Inlet Diameter: 6mm
Outlet Thread: 1/8″ BSP Female
Terminals: 2 x 6.3mm Push-Fit
Integrated Diode: 1N4007P
Maximum Water Temperature: 20°C
Length: 123mm
Material: Brass outlet

🔧 Installation Notes

• Disconnect power before installation
• Confirm correct voltage (24V systems only)
• Ensure correct flow direction when installing
• Secure hose connections to prevent leaks
• Prime system after installation
